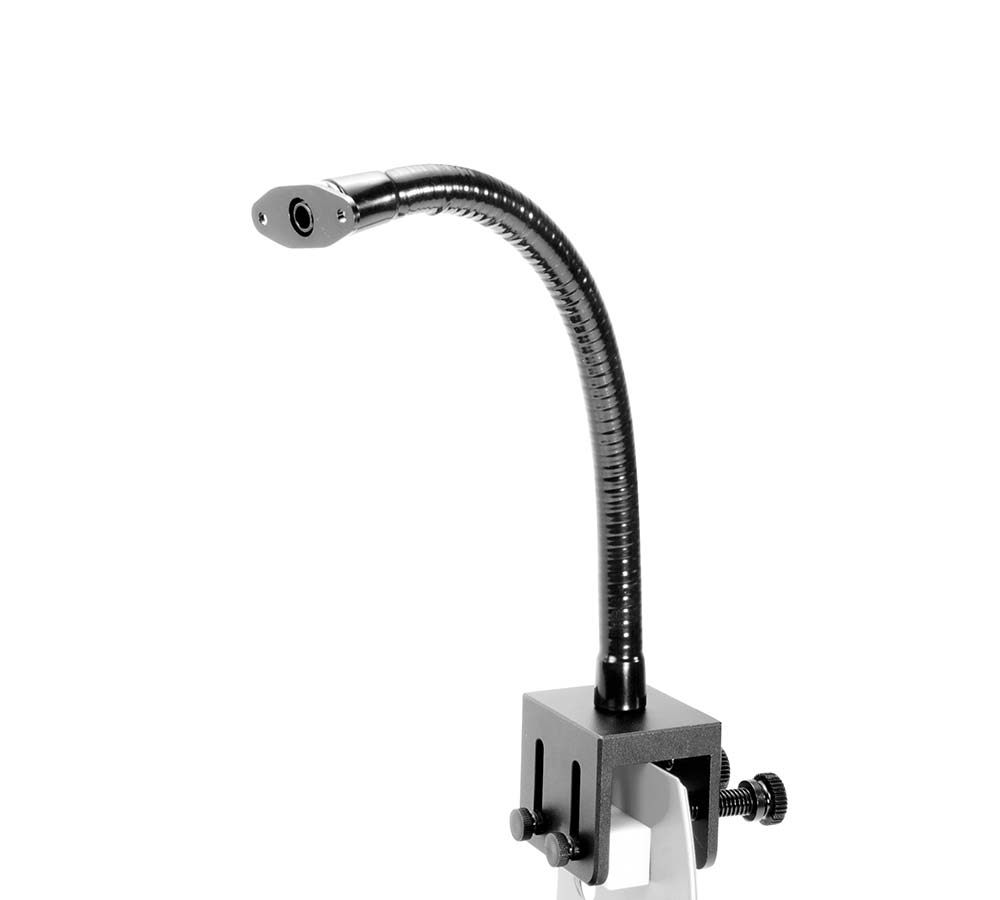

Mini A-Series Gooseneck

  • Part Number

    KSAGN03

  • Weight

    0.73 lb / 0.33kg

  • Dimensions

    ø 0.57" x H 10"

  • Product Information

    Overview

    The Mini Gooseneck is a versatile mounting system that allows you to customize the positioning of your light. The 10" arm attaches securely to the top of a tank without a canopy.

    What's in the Box

    • A80 Gooseneck (x1)

    • Gooseneck Base (x1)

    • Plastic Stepper (x1)

    • Plastic Screw (x2)

    • Thumb Screw (x2)

    • Gooseneck Bracket (x1)

    Compatible with

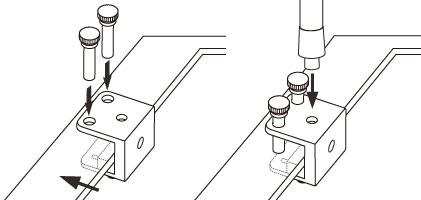

    (A) Setting up the Gooseneck Base

    A1

    Insert plastic stepper into gooseneck base and secure with plastic screws.

    A2

    Place gooseneck base onto aquarium.

    A3

    Attach gooseneck base to aquarium with the thumb screws.

    A4

    Screw gooseneck into the gooseneck base.



    Eurobrace Tanks:

    Rotate the gooseneck base so that the clamp lies horizontally, with the side with 3 holes facing up. Follow the above steps for gooseneck mounting.

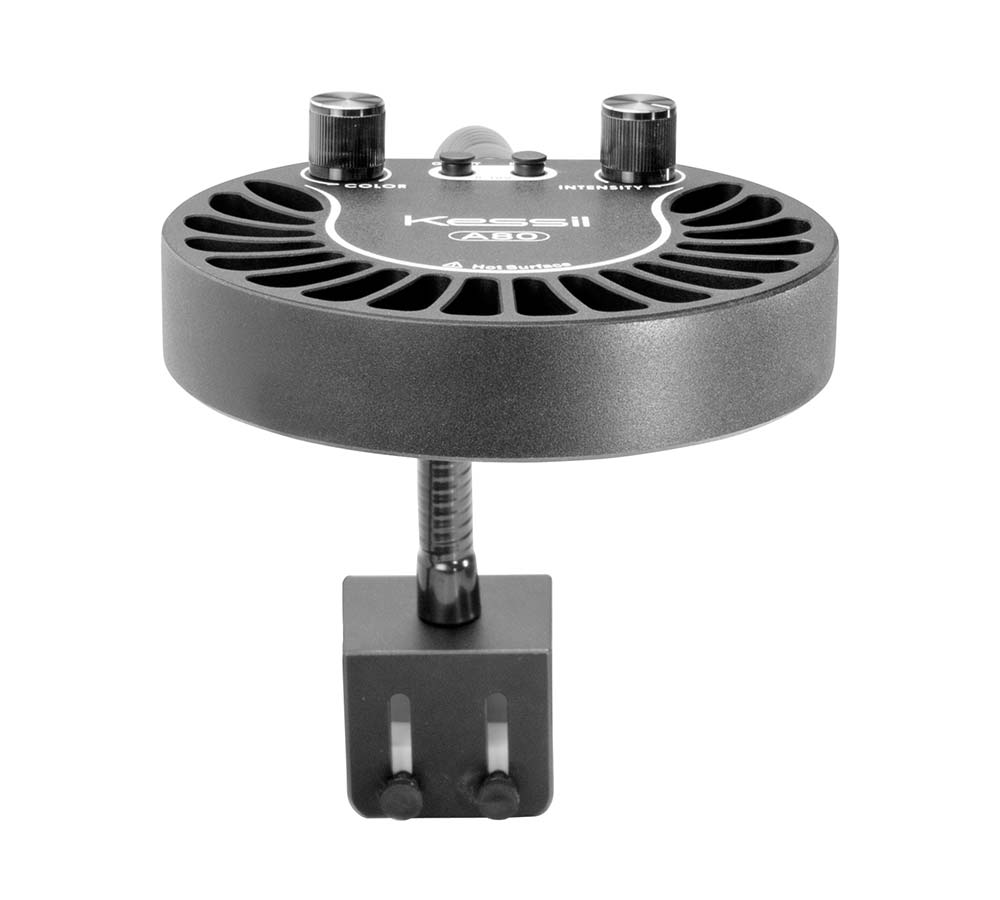

    (B-1) Attaching the A80 Fixture onto the Gooseneck

    B1

    Use the phillip screws to secure the gooseneck bracket to the A80.

    B2

    Screw the gooseneck into the gooseneck bracket.

    B3

    Connect the power supply and adjust the gooseneck.
