W500BD Interior Landscape / Aquascape Light
175W LED / 55°
Model No: KSW500BD-
DOWNLOADS
Separator
SPECIFICATIONS
| Beam Angle | 55° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| Power Draw | 175W max |
| AC Input Voltage | 100 - 240V AC, 60Hz 100 - 277V AC (only with CLP) |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.9lb / 0.9kg |
| Power Supply Weight | 1.6lb / 0.7kg |
Separator
MECHANICAL FIGURES

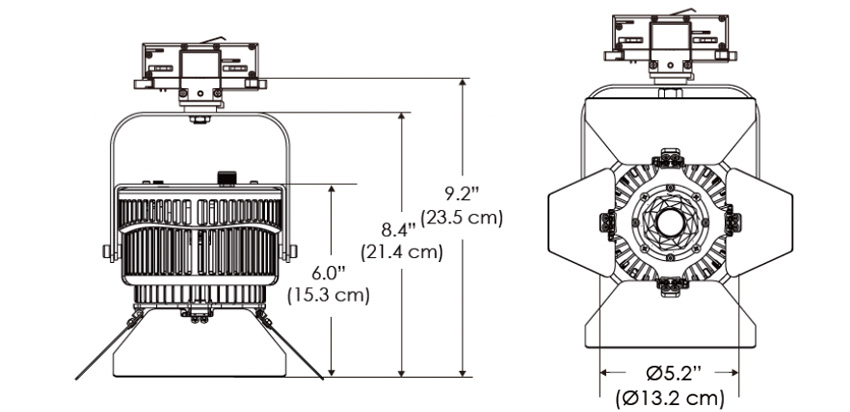

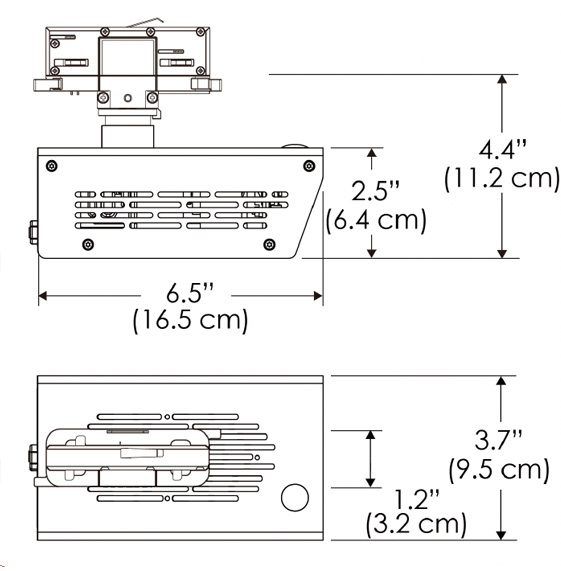

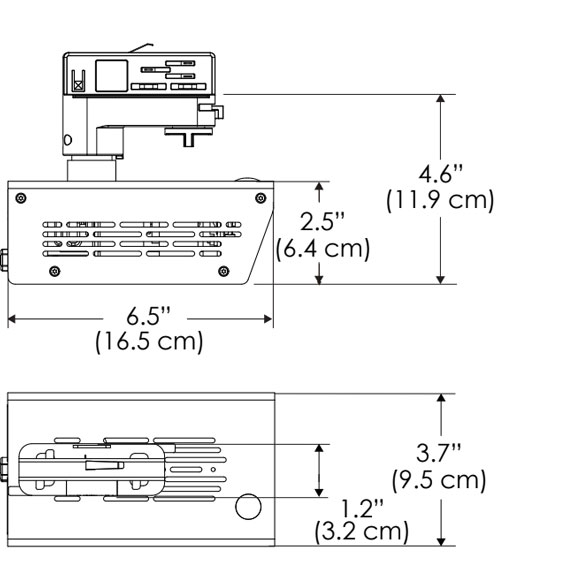

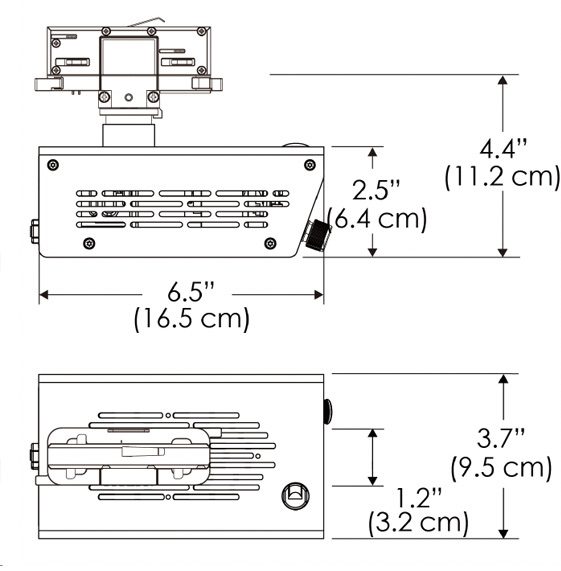

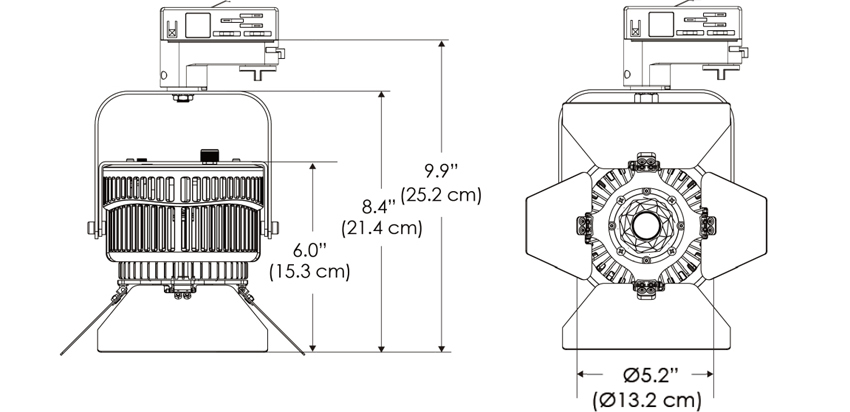

| W500BD-TOX/TON | PS  | PSX |
 |
 |  |
| W500BD-TOX/TON | PS  | PSX |
 |
 |  |
| W500BD-CLP | PS | PSX  |
 |
 |  |
| Mounting Bracket Dimensions ALL-CLP *All -CLP configuration models come with standard DC cables of 6 inches and AC cables of 10 ft. |
 |
|

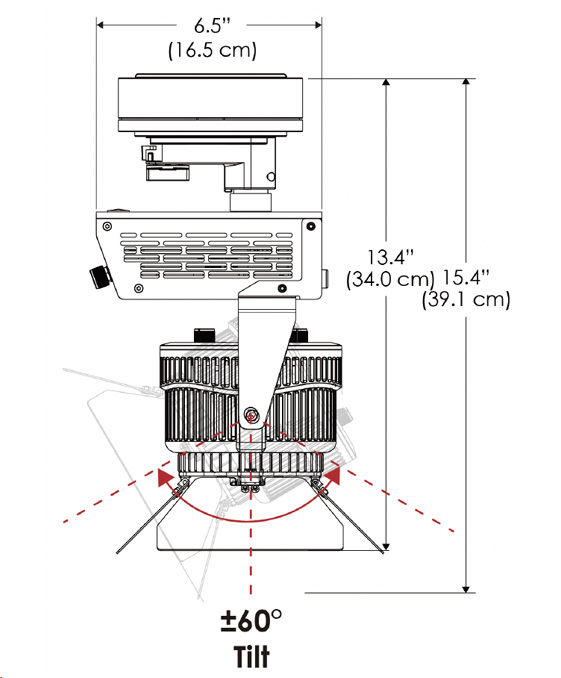

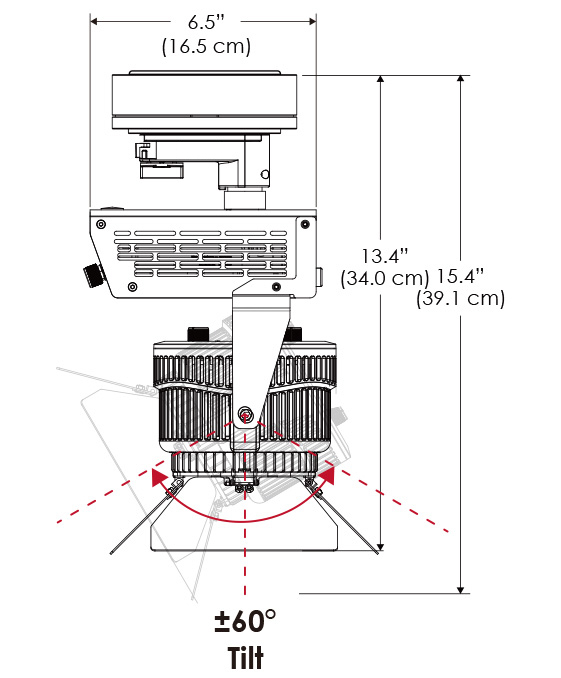

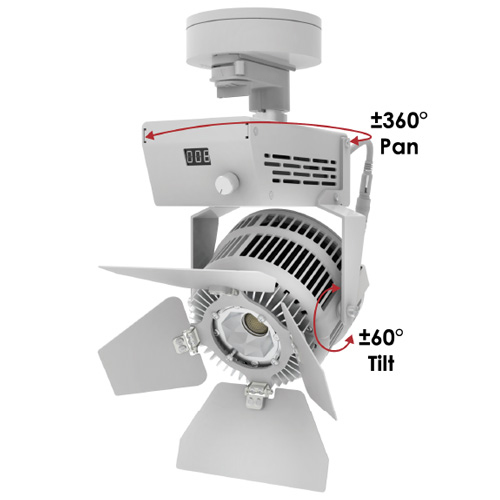

| W500BD-MPT | PSX | PSX |
 |
 |  |
| W500BD-TEX (legacy products) | PS | PSX |
 |
 |  |
| W500BD-TG (legacy products) | PS |
|
 |
 | |
Separator

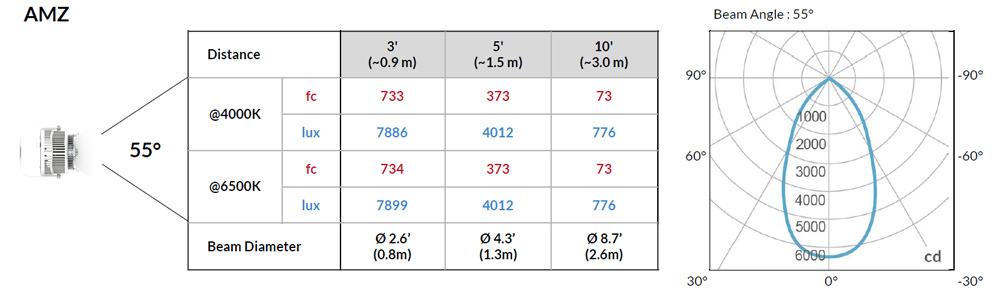

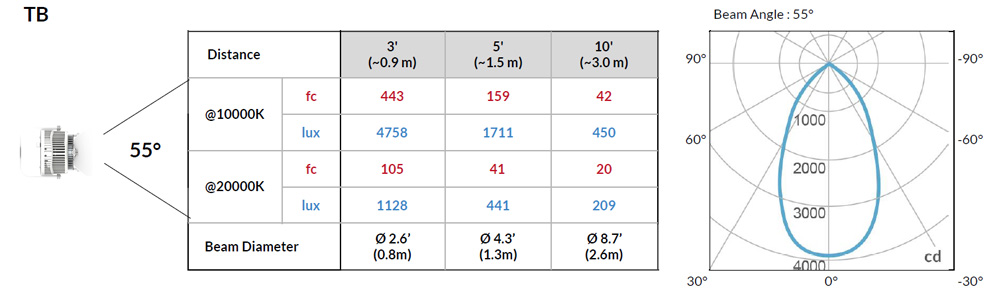

PHOTOMETRIC DATA
Separator
ITEMS INCLUDED
W500BD-TOX / TON / CLP / TEX / TG Type

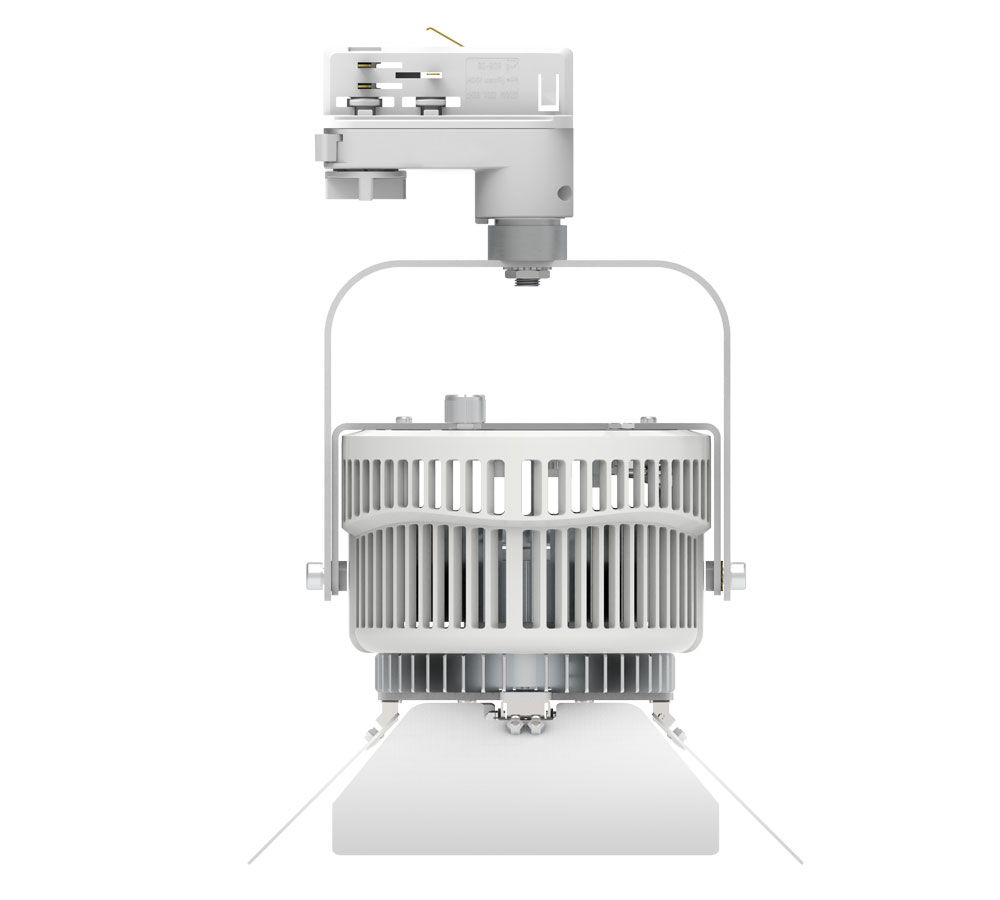

W500BD fixture

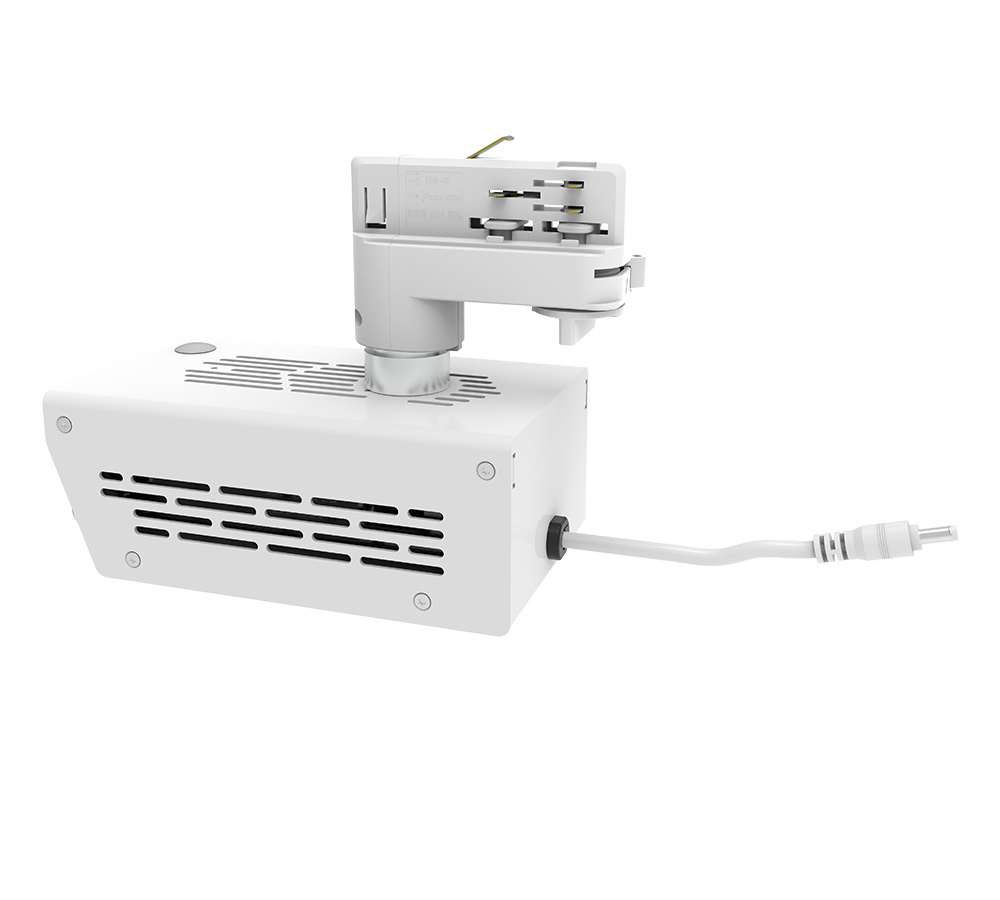

PSU

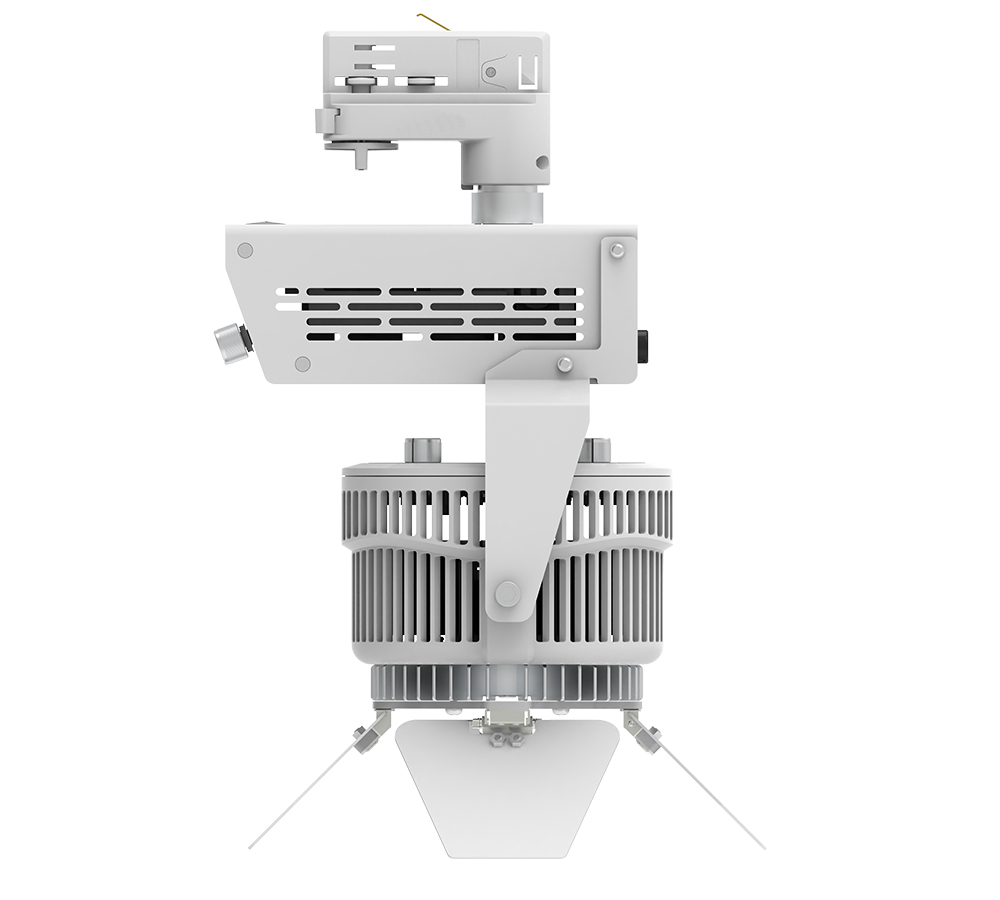

W500BD-MPT Type
W500BD fixture + PSU
Monopoint Adapter
